NEMI Campaign 2008
Optical

Last update: 2019-07-05, 07:28:11 UTC.

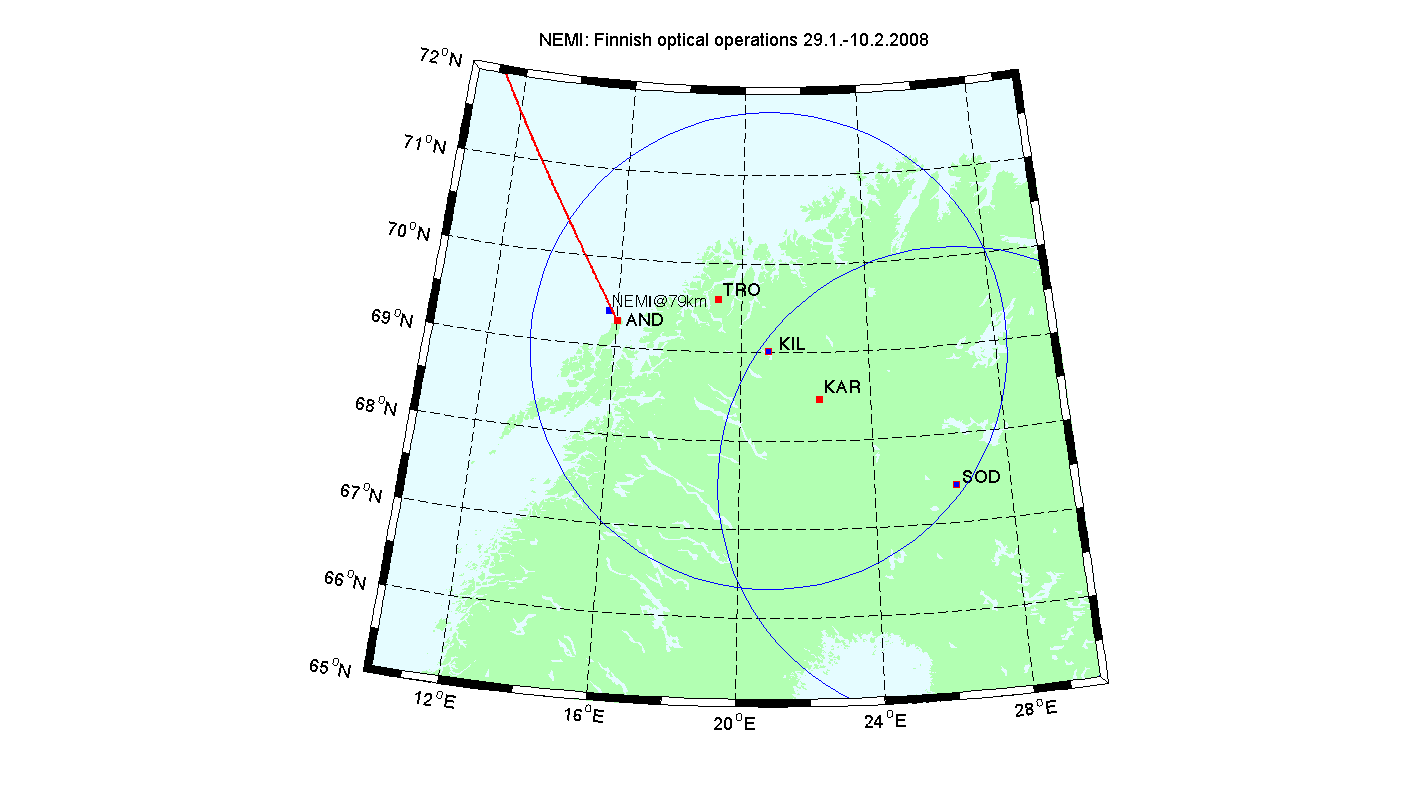

Map of Finnish optical operations during NEMI launch window.

---

Tromsø

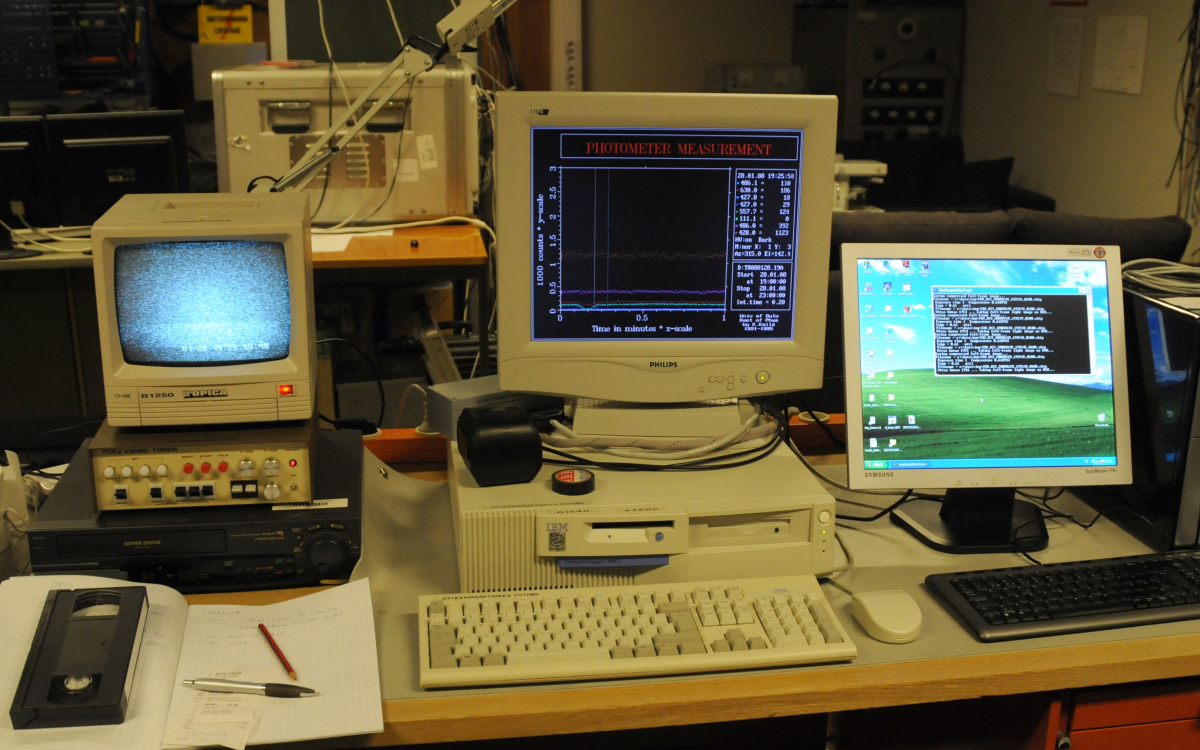

The Space Physics Group of University of Oulu instrumentation at the PRE building, Eiscat site. Monitors from left to right:

• Real Speed Camera (Auroral TV Camera). (pointed to field-line): recorded to VHS tapes.
• Meridian Scanning photometer with zenith photometers. NEMI: scans from 70° to 160°, FPI: scans from 35° to 100°, integration time 0.2s.
• SBIG Digital Camera with Hanimex 35mm/F2.8 lens. F4 used.

University of Tromsø operates:

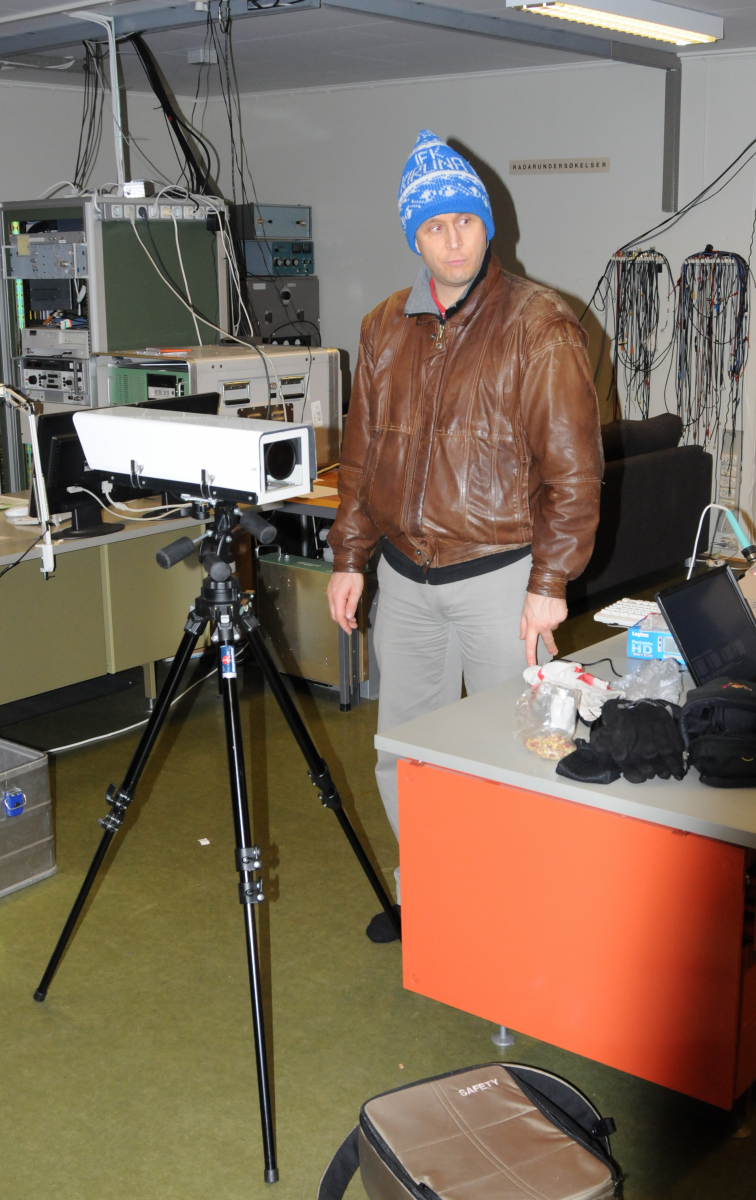

• ODIN Camera: FOV 18x12°, videorate recorded to DV tapes.

---

Kilpisjärvi

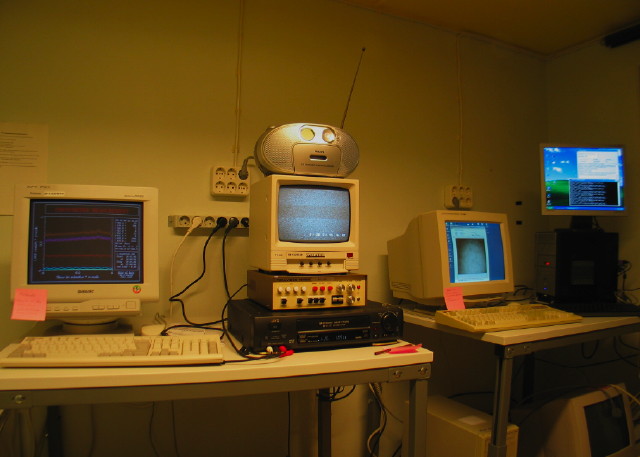

Optical instrumentation at Kilpisjärvi site station forms from the instruments of Space Physics Group of University of Oulu. Monitors from left to right:

• Meridian Scanning photometer with zenith photometers: scans from 70° to 160°, integration time 0.2s.
• Real Speed Camera (Auroral TV Camera): recorded to VHS tapes, FOV: atz. 315°, alt. 20-50°
• AP-7 Digital Camera

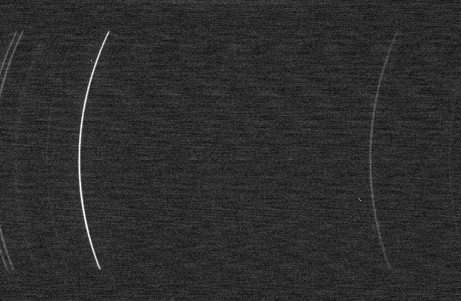

• Spectrometer:Data sample. Sample taken with 2s exposur. CCD Imager (SBIG ST-L 1301) captures slice from the sky using a slit, mirror and diffraction grating to produce spectrum presented. Spectrometer operates with 1s exposure every five seconds.

Also All Sky Imager of Finnish Meteorological Institute locates at the same station.

• FMI EMCCD All-Sky Imager: Latest white image Latest 557.7nm image (Updated every 5 minutes. Note! These are 14-bit pictures.)

---

Karesuvanto

• Meridian Scanning photometer with zenith photometers: scans from 90° to 150°, integration time 0.2s.
• AP-7 Digital Camera

---

Sodankylä

• SGO All Sky Camera: white light (every 15 min) and 5577 Å
• SGO EMCCD All-Sky Imager: Latest 557.7nm Latest white

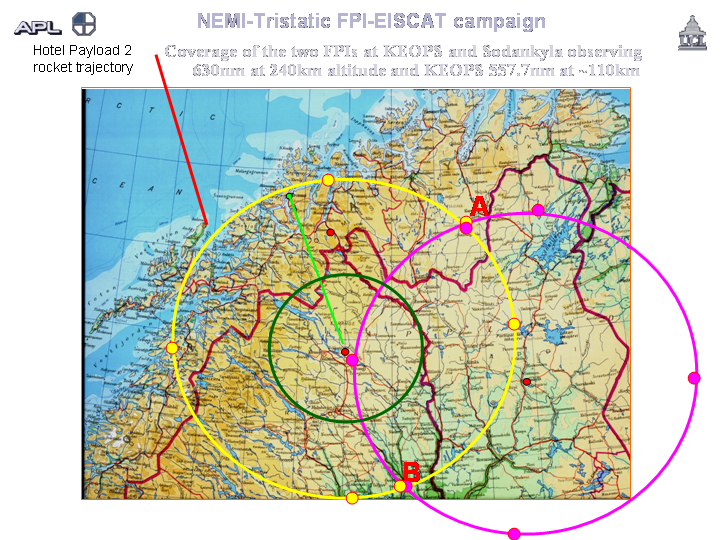

• UCL Fabry-Perot interferometer: Map
• UCL All-Sky Colour Imager: Latest Colour Image

---

Other sources

• IRF ALIS network: FOV_map
• UCL Fabry-Perot interferometer, KEOPS, Kiruna Map (same as above)
